Platani Italian Concealed Thermostatic Shower Valve, 1 Outlet - C1
Platani Italian Concealed Thermostatic Shower Valve, 1 Outlet - C1
Model: HTD09A-CO-PL-C1-00-WL-WF
Plus a 15% tariff surcharge on imported goods, shown in your cart.
Ordering from Europe or the UK? Orders to Europe and the UK are handled directly by our team. Contact us for a quote that includes delivery to your door.
Disclaimer: Colors and finishes shown are for representation only and may vary from the actual product.
Couldn't load pickup availability

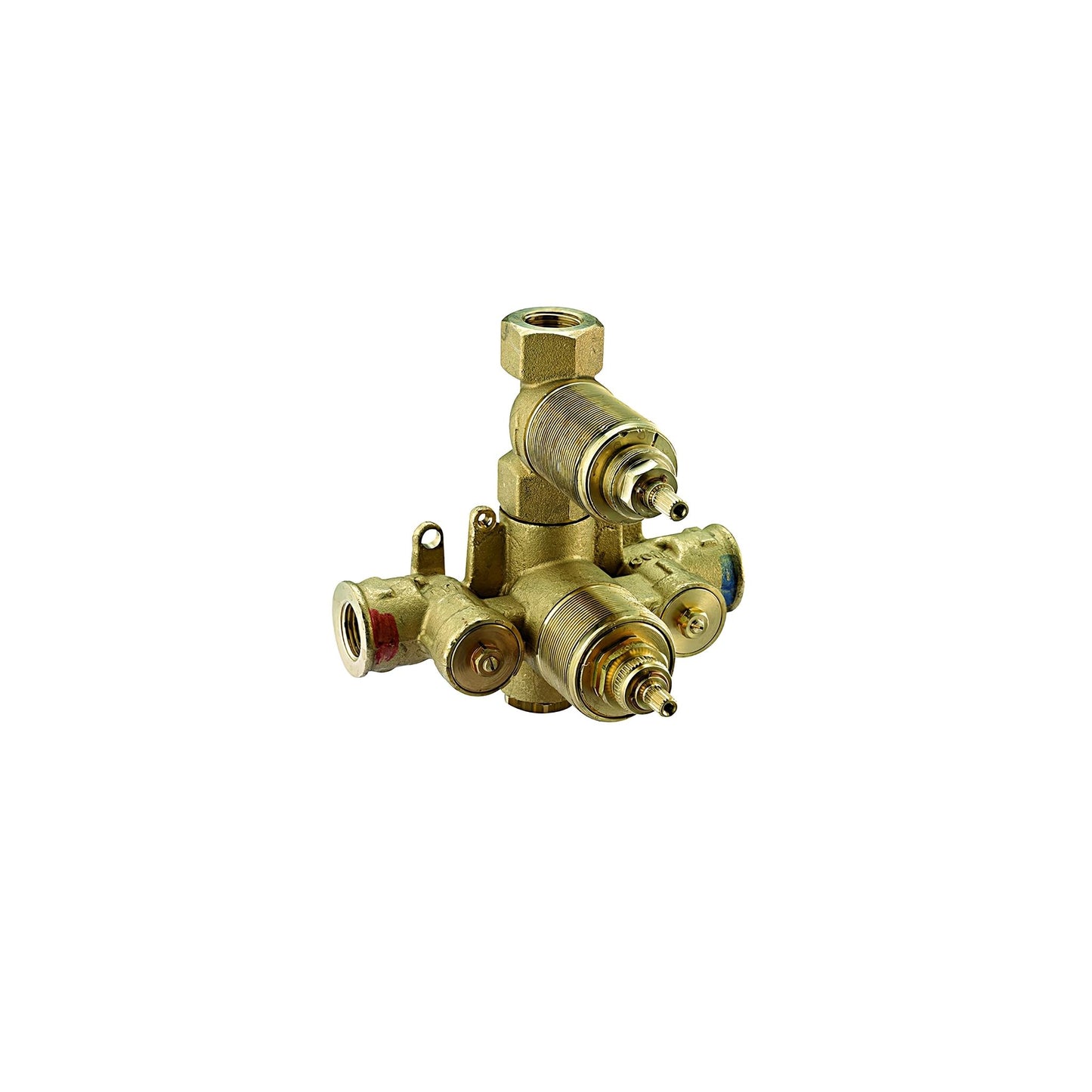

This Platani concealed thermostatic shower valve is made in Italy and part of the Platani collection. It is the in-wall valve for a thermostatic shower with 1 outlet. The spec sheet shows hot and cold inlets 5 7/8 inches (150 mm) apart and a chart of wall depths for the trim plate. The technical details on this page list a brass valve body, 1/2-inch connections and thermostatic function, with replacement cartridges C1 for volume control and C3 for the mixer and temperature regulator. It is installed behind the wall, and the thermostatic valve trim is sold separately. It is sold in one version, as the brass rough valve. A spec sheet with dimensions is available on this page. Suited to private residences as well as hotel and multifamily projects.
Compatibility: This valve works with the thermostatic shower valve trims, sold separately. Not sure which valve you need? See the shower planning guide.
Share
Download Specs
Benefits
Benefits
• The valve stays behind the wall, so only the trim shows
• The wall depth chart on the spec sheet helps set the valve at the right depth for the trim plate
• Replacement cartridges are listed by code, so the right part is easy to order
Features
Features
• Made in Italy, part of the Platani collection
• Concealed thermostatic shower valve for a shower with 1 outlet
• Hot and cold inlets 5 7/8 inches (150 mm) apart
• Material: brass valve body; 1/2-inch connections
• Replacement cartridges: C1 for volume control, C3 for the mixer and temperature regulator
• Installs behind the wall; the thermostatic valve trim is sold separately; sold in one version, as the brass rough valve
• Spec sheet with dimensions and a chart of wall depths for the trim plate on this page
Technical Details
Technical Details
Country of Origin: Italy
Material: Brass Valve Body
Dimensions: See technical drawings
Connection: 1/2" NPT
Valve Type: Concealed (1, 2, or 3 Outlet Diverter)
Style: Pressure Balance Diverter Valve
Valve Function: Thermostatic
Installation Type: Concealed Wall mounted
Replacement Cartridge for Volume Control: C1
Replacement Cartridge for Mixer/Temp Regulator: C3
