Arno Italian Exposed Thermostatic Tub and Shower Set with Round Showerhead, Handheld Shower and Tub Spout - C2
Arno Italian Exposed Thermostatic Tub and Shower Set with Round Showerhead, Handheld Shower and Tub Spout - C2
Model: HTD17-CR-AR-C2-00-WL-CH
Plus a 15% tariff surcharge on imported goods, shown in your cart.
Ordering from Europe or the UK? Orders to Europe and the UK are handled directly by our team. Contact us for a quote that includes delivery to your door.
Disclaimer: Colors and finishes shown are for representation only and may vary from the actual product.
Couldn't load pickup availability

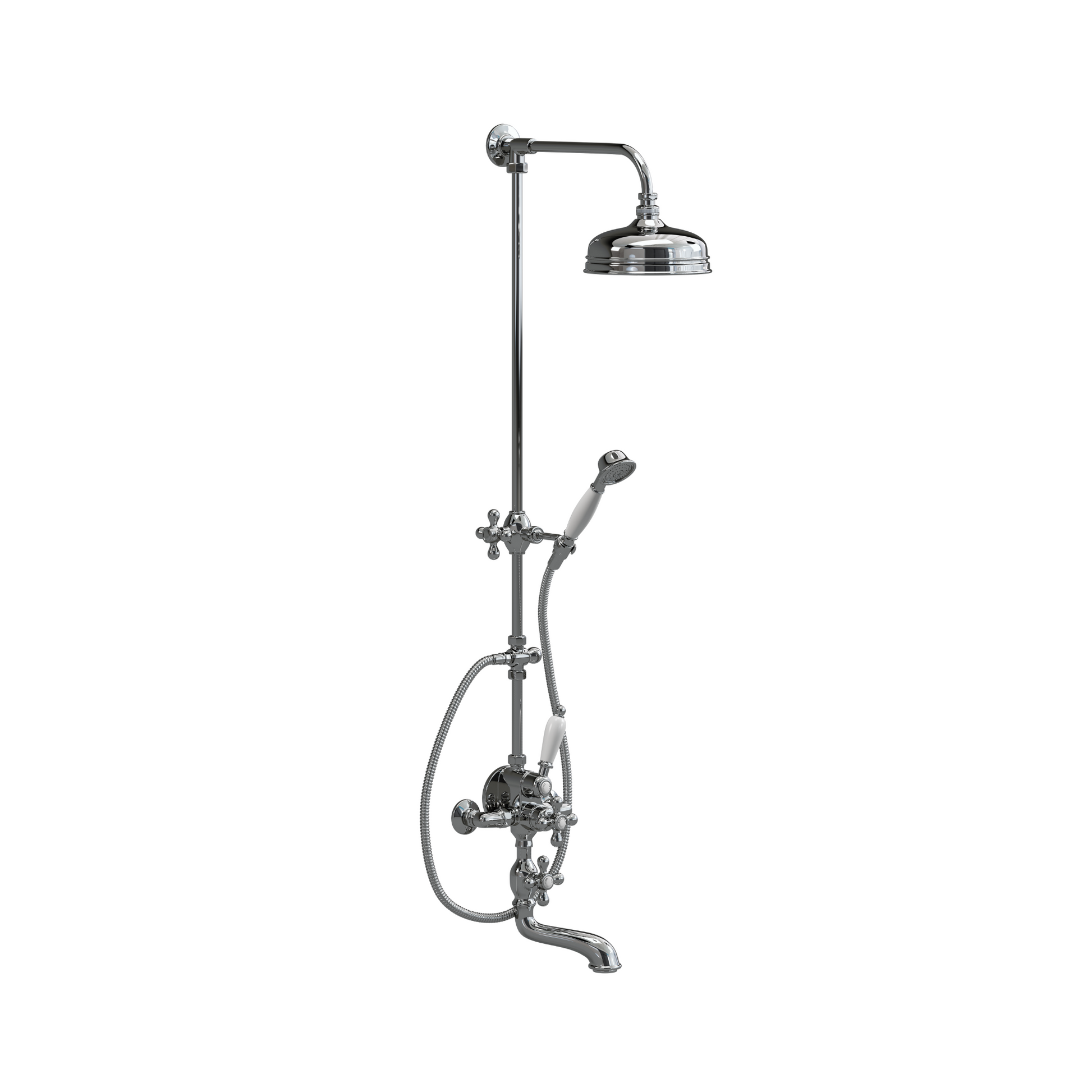

This Arno exposed thermostatic tub and shower set is made in Italy and part of the Arno collection. It is in a traditional style: a riser pipe with a curved arm to a round 7 7/8-inch (200 mm) showerhead, a handheld shower on a hose resting in a sliding holder on the riser, and an exposed thermostatic valve with a lever handle and cross handles, with a tub spout below it. The spec sheet shows the arm reaching 17 3/4 inches (450 mm) from the wall, 64 inches (1625 mm) from the valve inlet to the top of the arm, the tub spout reaching 5 3/4 inches (145 mm) and wall connections 5 7/8 inches (150 mm) apart. It has a brass body (components vary) and a brass showerhead, a 1.8 GPM flow rate, a 59-inch hose and 1/2-inch connections. It comes in 12 finishes: Polished Chrome, Polished Nickel, Brushed Nickel, Brushed Stainless Steel, Polished Brass, 24K Gold, Antique Gold, Old Copper, Old Bronze, Black Titanium, Black Matte and White Matte. A spec sheet with dimensions is available on this page. Suited to private residences as well as hotel and multifamily projects.
Share
Download Specs
Benefits
Benefits
- Showerhead, handheld shower, valve and tub spout come together in one set
- The handheld shower on its hose makes rinsing and cleaning the tub easier
- Cross handles and a round showerhead suit a traditional bathroom
- 12 finishes to match the rest of the shower fittings
Features
Features
- Made in Italy, part of the Arno collection
- Exposed thermostatic tub and shower set in a traditional style: a riser pipe with a curved arm to a round 7 7/8-inch (200 mm) showerhead
- Handheld shower on a 59-inch hose, resting in a sliding holder on the riser
- Exposed thermostatic valve with a lever handle and cross handles, with a tub spout below it
- Arm reaches 17 3/4 inches (450 mm) from the wall; 64 inches (1625 mm) from the valve inlet to the top of the arm; tub spout reaches 5 3/4 inches (145 mm); wall connections 5 7/8 inches (150 mm) apart, 1/2-inch connections
- Brass body (components vary) and brass showerhead; 1.8 GPM flow rate; 12 finishes
- Anti-scald control guards against sudden temperature changes
- Spec sheet with dimensions on this page
Technical Details
Technical Details
Country of Origin: Italy
Material: Brass Body (components vary)
Flow Rate: 1.8 GPM
Dimensions: See technical drawings
Connection: 1/2" NPT
Shower Head Material: Brass
Hose Length: 59"
Installation Type: Wall mounted
Suggestion: Install faucet 3 – 4 ft. above floor
