Cascate del Gorello Italian Exposed Thermostatic Tub and Shower Set with Square Showerhead, Arched Riser and Tub Spout - S1

Cascate del Gorello Italian Exposed Thermostatic Tub and Shower Set with Square Showerhead, Arched Riser and Tub Spout - S1

Collection: CASCATE DEL GORELLO

Model: HCT04-DA-CDG-S1-00-WL-CH

Regular price $2,165.99 USD
Regular price Sale price $2,165.99 USD
Sale Sold out

Plus a 15% tariff surcharge on imported goods, shown in your cart.

Finishes Information

Disclaimer: Colors and finishes shown are for representation only and may vary from the actual product.

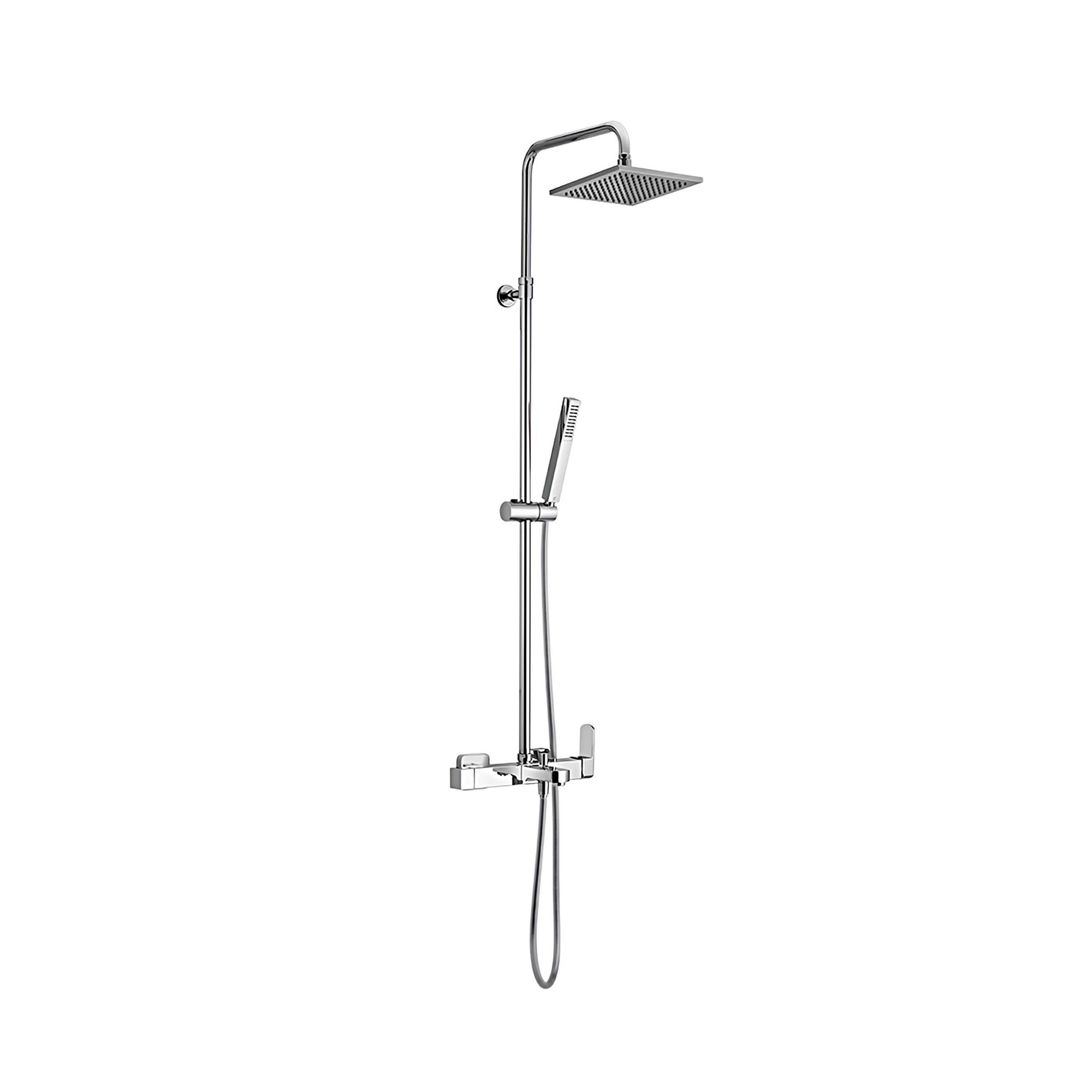

This Cascate del Gorello exposed thermostatic tub and shower set is made in Italy and part of the Cascate del Gorello collection. It is in a contemporary style: a riser that arches over to a square 9 7/8-inch (250 mm) showerhead, a square stick handheld shower in a sliding holder on the riser on a 59-inch (1500 mm) hose, and an exposed thermostatic bar valve with a lever and a flat tub spout below it. The spec sheet shows the tub spout reaching 8 to 8 1/4 inches (204 to 209 mm) from the wall, the top of the riser adjustable from 45 1/8 to 70 3/4 inches (1147 to 1797 mm) above the valve inlet, the head reaching 20 5/8 to 20 7/8 inches (525 to 530 mm) from the wall, the valve 12 3/4 inches (323 mm) wide and wall connections 5 7/8 inches (150 mm) apart. The spec sheet also lists thermal protection if the hot or cold supply shuts off. The spec sheet lists the handheld shower as ABS. It has a brass body (components vary) and a brass showerhead, a 1.8 GPM flow rate, a 59-inch hose and 1/2-inch connections. It comes in 12 finishes: Polished Chrome, Polished Nickel, Brushed Nickel, Brushed Stainless Steel, Polished Brass, 24K Gold, Antique Gold, Old Copper, Old Bronze, Black Titanium, Black Matte and White Matte. A spec sheet with dimensions is available on this page. Suited to private residences as well as hotel and multifamily projects.

Download Specs

Benefits

  • Showerhead, handheld shower, valve and tub spout come together in one set
  • The height-adjustable riser lets the showerhead be set higher or lower
  • The handheld shower on its hose makes rinsing and cleaning the tub easier
  • 12 finishes to match the rest of the shower fittings

Features

  • Made in Italy, part of the Cascate del Gorello collection
  • Exposed thermostatic tub and shower set in a contemporary style: a riser that arches over to a square 9 7/8-inch (250 mm) showerhead
  • Square stick handheld shower in a sliding holder on the riser, on a 59-inch (1500 mm) hose
  • Exposed thermostatic bar valve with a lever, and a flat tub spout below it reaching 8 to 8 1/4 inches (204 to 209 mm) from the wall
  • Top of the riser adjustable from 45 1/8 to 70 3/4 inches (1147 to 1797 mm) above the valve inlet; the head reaches 20 5/8 to 20 7/8 inches (525 to 530 mm) from the wall; valve 12 3/4 inches (323 mm) wide; wall connections 5 7/8 inches (150 mm) apart, 1/2-inch connections
  • Anti-scald control guards against sudden temperature changes
  • Brass body (components vary), brass showerhead and ABS handheld shower; 1.8 GPM flow rate; 12 finishes; the spec sheet lists thermal protection if the hot or cold supply shuts off
  • Spec sheet with dimensions on this page

Technical Details

Country of Origin: Italy
Material: Brass Body (components vary)
Flow Rate: 1.8 GPM
Dimensions: See technical drawings
Connection: 1/2" NPT
Shower Head Material: Brass
Hose Length: 59"
Installation Type: Wall mounted
Suggestion: Install faucet 3 – 4 ft. above floor
