Bormida Italian Shower Diverter with Shield-Shaped Knob - C4
Bormida Italian Shower Diverter with Shield-Shaped Knob - C4
Model: HCT25-DC-BO-C4-00-WL-CH
Plus a 15% tariff surcharge on imported goods, shown in your cart.
Ordering from Europe or the UK? Orders to Europe and the UK are handled directly by our team. Contact us for a quote that includes delivery to your door.
Disclaimer: Colors and finishes shown are for representation only and may vary from the actual product.
Couldn't load pickup availability

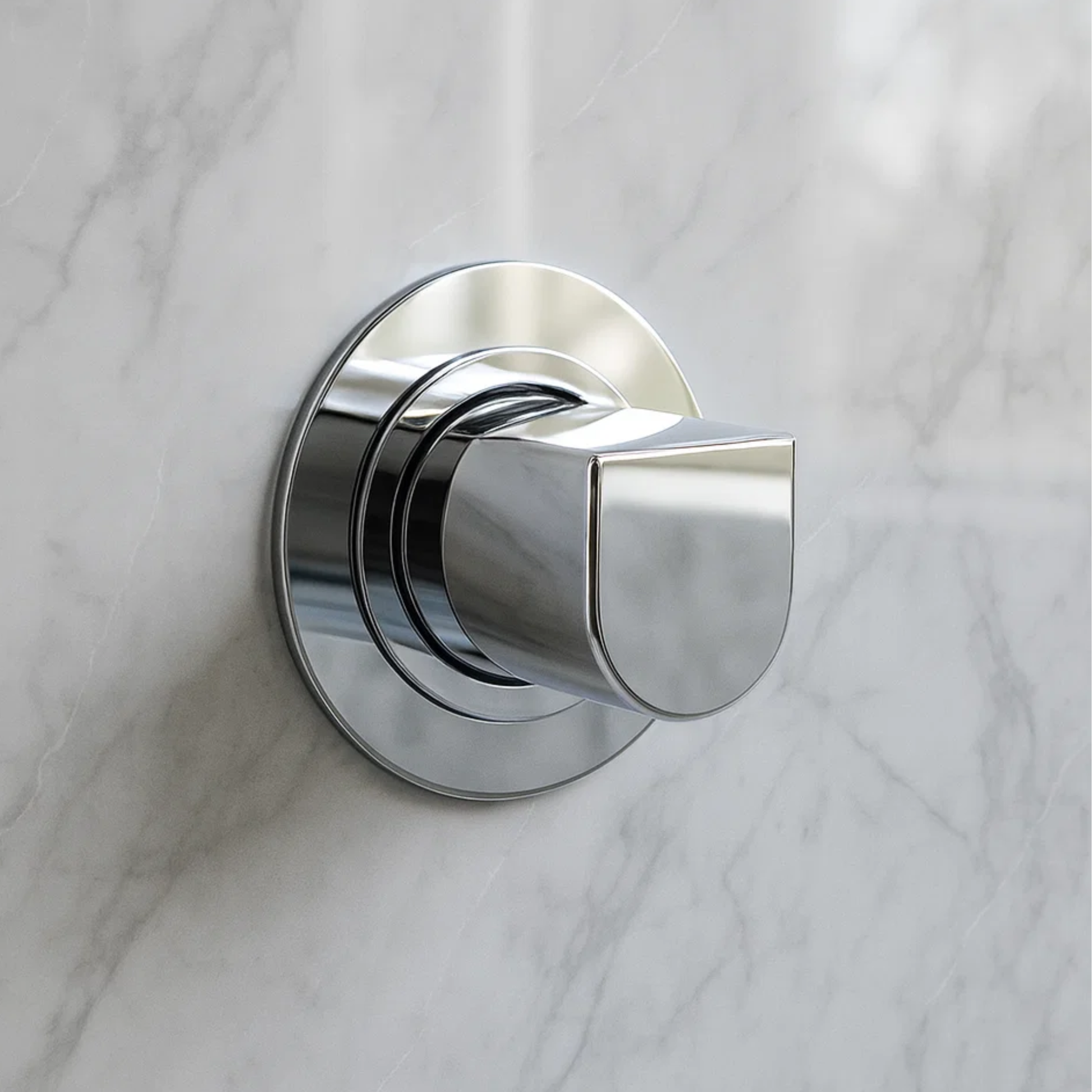

This Bormida shower diverter is made in Italy and part of the Bormida collection. It is a wall-mounted control for a concealed shower system, sold as its own product. It has a shield-shaped knob of 1 5/8 in. (40 mm) on a round wall flange of 3 1/8 in. (80 mm). The drawing gives a projection of 1 3/4 to 2 3/8 in. (46 to 61 mm) from the flange. Its replacement cartridge is the C1 cartridge, which is sold separately. It comes in 12 finishes: Polished Chrome, Polished Nickel, Brushed Nickel, Brushed Stainless Steel, Polished Brass, 24K Gold, Antique Gold, Old Copper, Old Bronze, Black Titanium, Black Matte and White Matte. A spec sheet is available on this page. Suited to private residences as well as hotel and multifamily projects.
Disclaimer: Product image is a digital interpretation intended to match the associated thermostatic valve trim within this collection. Final product may vary.
Share
Download Specs
Benefits
Benefits
- The valve body sits inside the wall, so only the handle and flange show
- A replacement cartridge is available, so the control can be serviced later
- 12 finishes to match the rest of the shower fittings
Features
Features
- Made in Italy, part of the Bormida collection
- Wall-mounted control for a concealed shower system, sold as its own product
- Shield-shaped knob, 1 5/8 inches (40 mm), on a 3 1/8-inch (80 mm) round wall flange
- Projects 1 3/4 to 2 3/8 inches (46 to 61 mm) from the flange
- Replacement cartridge for volume control: C1, sold separately
- 12 finishes
- Ceramic disc valve that prevents leaks and drips
- Spec sheet on this page
Technical Details
Technical Details
Country of Origin: Italy
Dimensions: See technical drawings
Connection: 1/2" NPT
Valve Type: Concealed
Installation Type: Concealed Wall mounted
Replacement Cartridge for Volume Control: C1
